Class 8 Science Curiosity Chapter 4 Solutions (NCERT 2026–27) – Electricity: Magnetic and Heating Effects

These Class 8 Science Curiosity Chapter 4 solutions cover Electricity: Magnetic and Heating Effects from the new NCF-2023 textbook (2026–27), with every “Keep the curiosity alive” question answered step by step.

Class: 8 Subject: Science Book: Curiosity Chapter: 4 Exercise: Keep the curiosity alive (11 Qs) Session: 2026–27
On this page

Class 8 Science Curiosity Chapter 4 Solutions – Overview

Chapter 4 of Curiosity, Electricity: Magnetic and Heating Effects, shows that an electric current does far more than light a lamp. A current flowing through a wire produces a magnetic field around it — the magnetic effect of electric current, first observed by Oersted. A current-carrying coil with an iron core becomes an electromagnet with two poles, used in lifting cranes and many devices. A current also heats a conductor because of its resistance — the heating effect that runs heaters, irons and kettles. Finally, the chapter explains how cells and batteries (Voltaic cells, dry cells, rechargeable batteries) generate electricity from chemical reactions. These Class 8 Science Curiosity Chapter 4 solutions answer every textbook question step by step.

Key Concepts & Definitions

Magnetic effect of electric current: when current flows through a conductor it produces a magnetic field around it; the field disappears when the current stops (Oersted’s discovery, 1820).

Magnetic field: the region around a magnet or current-carrying wire where its magnetic effect can be felt, e.g. by the deflection of a compass needle.

Electromagnet: a current-carrying coil that behaves as a magnet. An iron core (nail) makes it much stronger. It has two poles (N and S); its strength can be increased by raising the current or the number of turns, and its poles reverse if the current direction is reversed.

Heating effect of electric current: a conductor gets heated when current flows through it, because its resistance converts some electrical energy into heat. Heat depends on the material, thickness, length of the wire and the duration of current. Nichrome (a high-resistance wire) is used as the heating element in heaters, irons and kettles.

Cell / battery: a device that generates electric current from chemical reactions. A Voltaic (Galvanic) cell has two different metal electrodes dipped in an electrolyte. A dry cell uses a moist paste electrolyte (single-use). Rechargeable batteries (e.g. Li-ion) can be charged and reused many times.

“Probe and Ponder” & Activity Answers

If we don’t have an electric lamp while making an electric circuit with an electric cell, is there any other way through which we can find out if current is flowing in the circuit?

ANSWERYes. Place a magnetic compass below the wire. When current flows, the wire produces a magnetic field and the compass needle gets deflected; when there is no current, the needle stays in its original direction. So the deflection of the compass shows current is flowing.

Is it possible to make temporary magnets? How can these be made?

ANSWERYes. Wind insulated wire as a coil around an iron nail and connect the ends to a cell. While current flows, the coil and nail act as a magnet (an electromagnet) and pick up iron clips; when the current stops, the magnetism disappears. So it is a temporary magnet that can be switched on and off.

We can generate heat by burning fossil fuels and wood; but how is heat generated in various electrical appliances?

ANSWERElectrical appliances use the heating effect of electric current. Current passing through a high-resistance wire (the heating element, usually nichrome) faces opposition, so some electrical energy is converted into heat. This heats heaters, stoves, kettles, irons and immersion rods.

How do we know if a cell or a battery is dead? Can all cells and batteries be recharged?

ANSWERA cell is “dead” when the chemicals inside it are used up and it can no longer supply current (a lamp/LED in the circuit will not glow). Not all cells can be recharged — ordinary dry cells are single-use and must be disposed of, while rechargeable batteries (such as Li-ion) can be charged and reused many times.

Activity 4.1 / 4.2: What do you observe when current flows through a wire (with a compass below it) and when an insulated coil is wound on an iron nail and connected to a cell?

ANSWER In Activity 4.1, when the switch is ON the compass needle deflects from its original direction; when the switch is OFF the needle returns. This shows a current-carrying wire has a magnetic effect. In Activity 4.2, when current flows through the coil wound on the nail, the nail attracts iron paper clips (it becomes a magnet); when the current is stopped, the clips fall off. This is an electromagnet.

Think like a scientist: Repeat Activity 4.3 with 2 and 4 cells (same coil), and with 2 cells but a different number of turns. What do you observe?

ANSWERA single cell gives a small current, so the magnetic field is weak and the coil attracts only a few clips. More cells (a battery) give a larger current → a stronger magnetic field, more deflection and more clips lifted. Increasing the number of turns also makes the electromagnet stronger. The strength can be changed by changing the current or the turns; the poles reverse if the current direction is reversed.

Class 8 Science Curiosity Chapter 4 Solutions — Keep the Curiosity Alive

1. Fill in the blanks: (i) The solution used in a Voltaic cell is called ________.(ii) A current carrying coil behaves like a _______ .

ANSWER (i) The solution used in a Voltaic cell is called an electrolyte. (ii) A current carrying coil behaves like a magnet (electromagnet).

2. Choose the correct option: (i) Dry cells are less portable compared to Voltaic cells. (True/False)(ii) A coil becomes an electromagnet only when electric current flows through it. (True/False)(iii) An electromagnet, using a single cell, attracts more iron paper clips than the same electromagnet with a battery of 2 cells. (True/False)

ANSWER (i) False. Dry cells use a paste electrolyte (not a liquid), so they are more portable than Voltaic cells, which contain a liquid electrolyte that can spill. (ii) True. The coil acts as a magnet only while current flows; the magnetism disappears when the current stops. (iii) False. A single cell gives a smaller current and a weaker magnet, so it attracts fewer clips than the same coil with a 2-cell battery.

3. An electric current flows through a nichrome wire for a short time. (i) The wire becomes warm.(ii) A magnetic compass placed below the wire is deflected. Choose the correct option:(a) Only (i) is correct   (b) Only (ii) is correct   (c) Both (i) and (ii) are correct   (d) Both (i) and (ii) are not correct

ANSWER (c) Both (i) and (ii) are correct. A current always produces both effects together: it heats the conductor (heating effect) and creates a magnetic field that deflects a nearby compass (magnetic effect).

4. Match the items in Column A with those in Column B. Column A: (i) Voltaic cell   (ii) Electric iron   (iii) Nichrome wire   (iv) Electromagnet Column B: (a) Best suited for electric heater   (b) Works on magnetic effect of electric current   (c) Works on heating effect of electric current   (d) Generates electricity by chemical reactions

ANSWER
Column AColumn B
(i) Voltaic cell(d) Generates electricity by chemical reactions
(ii) Electric iron(c) Works on heating effect of electric current
(iii) Nichrome wire(a) Best suited for electric heater
(iv) Electromagnet(b) Works on magnetic effect of electric current
So the matching is (i)–(d), (ii)–(c), (iii)–(a), (iv)–(b).

5. Nichrome wire is commonly used in electrical heating devices because it (i) is a good conductor of electricity.(ii) generates more heat for a given current.(iii) is cheaper than copper.(iv) is an insulator of electricity.

ANSWER (ii) generates more heat for a given current. Nichrome has a high resistance, so for the same current it converts more electrical energy into heat than a low-resistance wire like copper. (It is not an insulator, and its main advantage is its resistance, not its cost.)

6. Electric heating devices (like an electric heater or a stove) are often considered more convenient than traditional heating methods (like burning firewood or charcoal). Give reason(s) to support this statement considering societal impact.

ANSWER Electric heating devices are cleaner — they produce no smoke, soot or harmful indoor fumes, so they protect health (especially of women and children who often cook indoors). They are convenient and quick (switch ON/OFF instantly, easy to control the heat) and need no chopping or storing of wood or charcoal. They reduce cutting of trees, helping conserve forests and reduce air pollution, which benefits society and the environment.

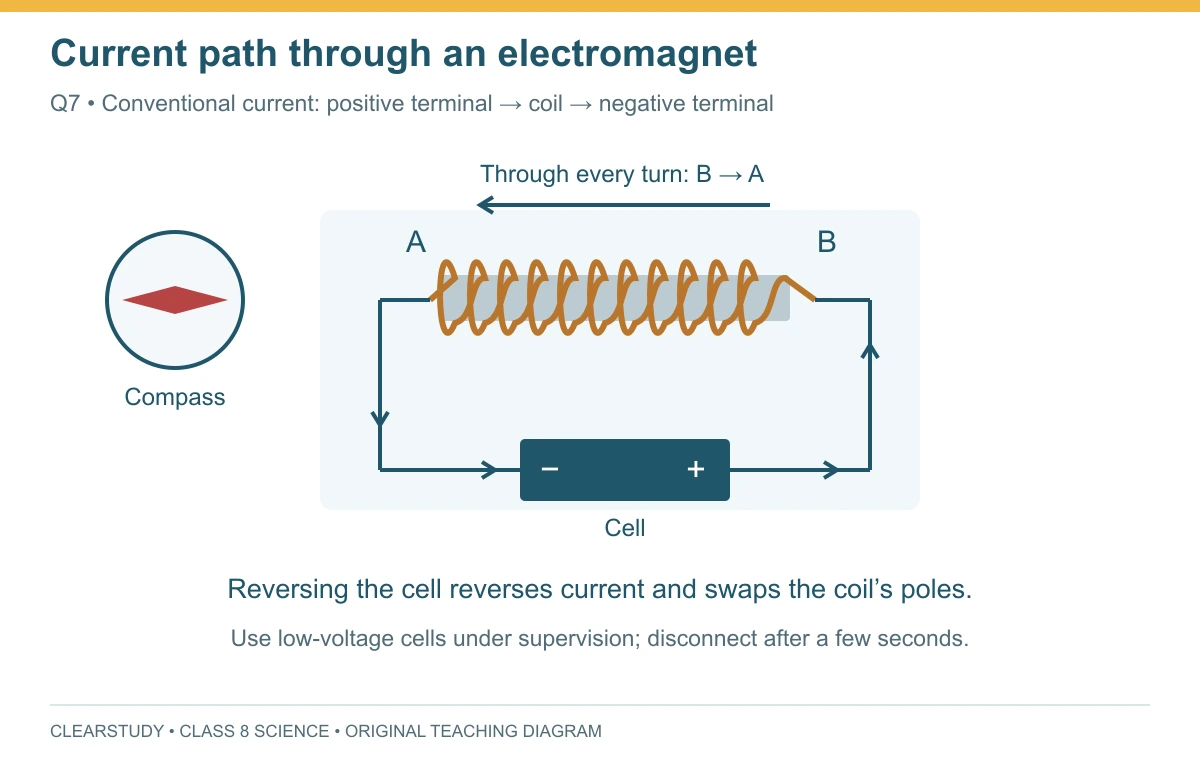

7. Look at the Fig. 4.4a. If the compass placed near the coil deflects: (i) Draw an arrow on the diagram to show the path of the electric current. (ii) Explain why the compass needle moves when current flows. (iii) Predict what would happen to the deflection if you reverse the battery terminals.

ANSWER (i) The current flows in one continuous loop: from the positive (+) terminal of the cell, through the connecting wire, around all the turns of the coil, and back to the negative (−) terminal. (In words, mark the arrow pointing from + through the coil to −.) (ii) When current flows through the coil it produces a magnetic field around it (magnetic effect of current). The compass needle is a tiny magnet, so it lines up with this field and is deflected from its original direction. (iii) If the battery terminals are reversed, the current flows the opposite way, so the coil’s poles reverse. The compass needle then deflects in the opposite direction (the magnitude of deflection stays about the same).

8. Suppose Sumana forgets to move the switch of her lifting electromagnet model to OFF position (in introduction story). After some time, the iron nail no longer picks up the iron paper clips, but the wire wrapped around the iron nail is still warm. Why did the lifting electromagnet stop lifting the clips? Give possible reasons.

ANSWER Because the switch stayed ON for a long time, current kept flowing continuously and the cell got used up (became weak/dead). With little or no current, the coil produces almost no magnetic field, so it stops attracting the clips. The wire is still warm due to the heating effect from the current that flowed earlier (and any small leftover current). So the heating effect lingers even though the magnetic effect is too weak to lift clips. (A weakened cell, or a broken/loose connection from overheating, are possible reasons.)

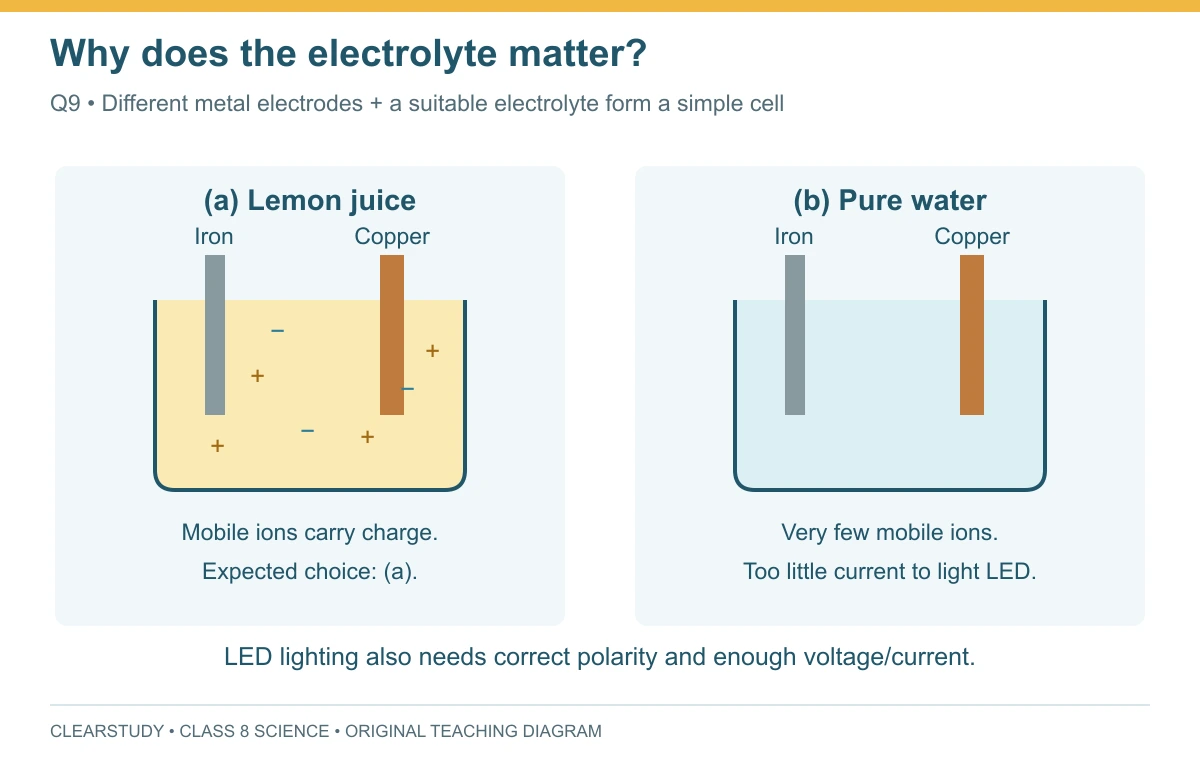

9. In Fig. 4.12, in which case the LED will glow when the switch is closed? [(a) Iron nail and copper strip in lemon juice; (b) Iron nail and copper strip in pure water]

ANSWER The LED glows in case (a), where the electrodes are dipped in lemon juice. Lemon juice is an acidic electrolyte, so it lets the cell drive a current and the LED lights up. In case (b) the liquid is pure water, which is a very poor conductor (no electrolyte), so almost no current flows and the LED does not glow.

10. Neha keeps the coil exactly the same as in Activity 4.4 but slides the iron nail out, leaving only the coiled wire. Will the coil still deflect the compass? If yes, will the deflection be more or less than before?

ANSWER Yes, the coil will still deflect the compass, because a current-carrying coil produces a magnetic field on its own. However, the deflection will be less than before. The iron nail (core) concentrates and strengthens the magnetic field; without it, the coil is a weaker magnet, so the needle deflects by a smaller amount.

11. We have four coils, of similar shape and size, made up from iron, copper, aluminium, and nichrome as shown in Fig. 4.13. When current is passed through the coils, compass needles placed near the coils will show deflection. (i) Only in circuit (a)(ii) Only in circuits (a) and (b)(iii) Only in circuits (a), (b), and (c)(iv) In all four circuits

ANSWER (iv) In all four circuits. Iron, copper, aluminium and nichrome are all conductors, so a current flows through every coil. The magnetic effect of electric current depends on current flowing in the coil, not on the metal used — so a compass near each coil will deflect. (The deflection may differ in size, but all four show some deflection.)

Common Misconceptions to Avoid

Watch out for these

  • Thinking an electromagnet is a permanent magnet — it is a temporary magnet that works only while current flows.
  • Believing the iron core creates the magnetism — the current creates the field; the iron nail only strengthens it.
  • Confusing the heating effect with the magnetic effect — a current produces both at the same time.
  • Assuming nichrome is used because it conducts best — it is used because of its high resistance (more heat for a given current), not low resistance.
  • Thinking pure water conducts electricity well — it is a poor conductor; an electrolyte (acid/salt solution) is needed in a cell.
  • Believing all cells can be recharged — ordinary dry cells are single-use; only rechargeable batteries can be reused.

Extra Practice Questions

Very Short Answer Type Questions

Q1. Who discovered the link between electricity and magnetism?

ANSWERHans Christian Oersted (in 1820).

Q2. Name the metal wire commonly used as a heating element.

ANSWERNichrome wire (it has high resistance).

Q3. What is the liquid in a Voltaic cell called?

ANSWERThe electrolyte (usually a weak acid or salt solution).

Short Answer Type Questions

Q1. State two ways to increase the strength of an electromagnet.

ANSWER(1) Increase the electric current by using more cells in the battery. (2) Increase the number of turns of the coil. (Using an iron core also makes it stronger.)

Q2. Why does a nichrome wire become hot when current passes through it, while the connecting copper wires stay cool?

ANSWERNichrome offers much higher resistance than copper of the same size, so it converts more of the electrical energy into heat. Copper has very low resistance, so it produces little heat and stays cool.

Long Answer Type Question

Q1. Describe how you would make a simple electromagnet and explain three ways its magnetic strength and polarity can be changed.

ANSWER Making it: Wind an insulated wire as a tight coil around an iron nail, and connect the two ends of the wire to a cell through a switch. When the switch is ON, current flows and the nail behaves like a magnet that picks up iron clips; when OFF, the magnetism disappears. Changing strength: (1) Increase the current (use more cells) — stronger field. (2) Increase the number of turns of the coil — stronger field. (3) Use an iron core — concentrates the field and makes it stronger. Changing polarity: Reverse the direction of the current (swap the battery terminals); the North and South poles of the electromagnet then interchange.

MCQs & Assertion–Reason

1. When current flows through a wire, the region around it where its magnetic effect is felt is called the:

(a) electric field    (b) magnetic field    (c) gravitational field    (d) heating zone

2. The scientist who discovered that electricity and magnetism are linked was:

(a) Volta    (b) Galvani    (c) Oersted    (d) Newton

3. A current-carrying coil that behaves as a magnet is called a/an:

(a) electrolyte    (b) electromagnet    (c) bar magnet    (d) compass

4. The magnetic effect of an electromagnet can be made stronger by:

(a) decreasing the current    (b) reducing the turns    (c) increasing the current or number of turns    (d) removing the iron core

5. Heat is produced in a wire carrying current because of the wire’s:

(a) magnetism    (b) resistance    (c) colour    (d) shape only

6. Which wire is most suitable as a heating element?

(a) copper    (b) aluminium    (c) nichrome    (d) silver

7. The poles of an electromagnet can be reversed by:

(a) adding more clips    (b) reversing the direction of the current    (c) using a longer nail    (d) switching it off

8. In a Voltaic cell, electricity is produced by:

(a) burning fuel    (b) a chemical reaction between the electrodes and electrolyte    (c) sunlight    (d) friction

9. A dry cell is called “dry” because its electrolyte is:

(a) a liquid acid    (b) pure water    (c) a thick moist paste    (d) a gas

10. Which of the following can be charged and used many times?

(a) an ordinary dry cell    (b) a rechargeable (Li-ion) battery    (c) a dead Voltaic cell    (d) a candle

Answer key: 1-(b), 2-(c), 3-(b), 4-(c), 5-(b), 6-(c), 7-(b), 8-(b), 9-(c), 10-(b).

For each Assertion–Reason question, choose: (A) Both true and the Reason correctly explains the Assertion; (B) Both true but the Reason is not the correct explanation; (C) Assertion true, Reason false; (D) Assertion false, Reason true.

A-R 1. Assertion: A compass needle deflects when current flows through a nearby wire.

Reason: A current-carrying wire produces a magnetic field around it.

A-R 2. Assertion: Inserting an iron nail into a current-carrying coil makes the electromagnet stronger.

Reason: The iron core concentrates the magnetic field of the coil.

A-R 3. Assertion: Nichrome wire is used in electric heaters.

Reason: Nichrome has a very low resistance and stays cool.

A-R 4. Assertion: A dry cell can be recharged and reused many times.

Reason: Rechargeable batteries store electricity by reversible chemical reactions.

A-R 5. Assertion: Pure water is a good electrolyte for a Voltaic cell.

Reason: An electrolyte such as lemon juice or salt solution helps conduct electricity in a cell.

Answer key: 1-(A), 2-(A), 3-(C), 4-(D), 5-(D).

Quick Revision Summary

  • When electric current flows through a conductor, it produces a magnetic field around it — the magnetic effect of electric current; it disappears when the current stops.
  • A current-carrying coil that behaves as a magnet is an electromagnet; an iron core makes it stronger; it has N and S poles.
  • Generation of heat in conductors due to the flow of electric current is the heating effect of electric current.
  • A cell or battery generates current because of chemical reactions inside it (Voltaic cell, dry cell).
  • Rechargeable batteries can be recharged and reused multiple times.

Real-life Applications

The magnetic effect runs lifting electromagnets on cranes in scrap yards and factories, plus electric bells, motors, fans and loudspeakers. The heating effect powers electric heaters, stoves, kettles, irons, immersion rods and hair dryers, and is used in industrial furnaces to melt and recycle scrap steel. Cells and batteries provide portable power for torches, watches, mobile phones, laptops, inverters and electric vehicles — with rechargeable Li-ion batteries reducing waste. Knowing the heating effect also explains why correctly rated wires, plugs and sockets are needed to prevent overheating and fires.

How to score full marks in this chapter

Always state that a current produces both a magnetic and a heating effect. Remember the three ways to strengthen an electromagnet (more current, more turns, iron core) and that reversing the current reverses the poles. For heating questions, link it to resistance and why nichrome (high resistance) is the heating element. For cell questions, name the electrolyte and remember that pure water does not work.

Frequently Asked Questions

What is Class 8 Science Curiosity Chapter 4 about?

It covers the magnetic effect of electric current (electromagnets and Oersted’s discovery), the heating effect of electric current (heating elements like nichrome), and how cells and batteries — Voltaic cells, dry cells and rechargeable batteries — generate electricity from chemical reactions.

What is an electromagnet and how can it be made stronger?

An electromagnet is a current-carrying coil that behaves as a magnet only while current flows. It can be made stronger by increasing the current (more cells), increasing the number of turns of the coil, or adding an iron core.

Why is nichrome wire used in electric heaters?

Nichrome has a high resistance, so for a given current it converts more electrical energy into heat than copper. This makes it ideal as the heating element in heaters, irons and kettles.

Are these Class 8 Science Curiosity Chapter 4 solutions free?

Yes. All solutions are free and follow the official NCERT Curiosity textbook for 2026–27, with every “Keep the curiosity alive” question solved step by step.
