Class 7 Science Curiosity Chapter 3 Solutions – Overview

Chapter 3 of Curiosity, Electricity: Circuits and Their Components, begins with the many uses of electricity and then explores how a simple device like a torchlight works. You learn about the electric cell (a portable source of electrical energy with a positive and a negative terminal), the battery (two or more cells joined positive-to-negative), the electric lamp (incandescent lamps with a glowing filament and modern LED lamps), the electrical circuit (a complete path for current to flow), the switch (which completes or breaks a circuit), circuit diagrams drawn using standard symbols, and finally conductors and insulators. The chapter stresses safety — only batteries or cells should be used for experiments, never the mains supply, because our body is itself a conductor of electricity.

Key Concepts & Definitions

Electric cell: a portable source of electrical energy with two terminals — the metal cap is the positive (+ve) terminal and the flat metal disc is the negative (−ve) terminal.

Battery: a combination of two or more cells in which the positive terminal of one cell is joined to the negative terminal of the next. (The term “battery” is also used for a single cell, e.g. a mobile phone battery.)

Incandescent lamp: a lamp with a thin wire called a filament inside a glass bulb; the filament gets hot and glows when current passes through it. It can be connected either way round.

LED (Light Emitting Diode): a lamp with no filament and two terminals — positive (longer wire) and negative (shorter wire). Current passes through an LED in one direction only, so it must be connected the right way to glow.

Electrical circuit: a complete, closed path that allows electric current to flow. Conventional current flows from the cell’s positive terminal through the external circuit to its negative terminal.

Switch: a simple device that completes (ON / closed) or breaks (OFF / open) a circuit. In the OFF position there is an air gap between its terminals.

Circuit diagram: a representation of an electrical circuit using standard symbols for its components.

Conductors: materials (mainly metals such as copper, silver, gold) through which electric current flows easily.

Insulators: materials (plastic, rubber, glass, wood, ceramics) through which current does not pass easily under normal conditions; they are used to cover wires, plugs and switches for safety.

“Let Us Enhance Our Learning” – NCERT Solutions

Original answers for Questions 1–11 on pages 37–39 of NCERT Curiosity, Reprint 2026–27. Circuit connections have been checked against Figs. 3.16–3.21.

1. Choose the incorrect statement. (i) A switch is the source of electric current in a circuit. (ii) A switch helps to complete or break the circuit. (iii) A switch helps us to use electricity as per our requirement. (iv) When the switch is in ‘OFF’ position, there is an air gap between its terminals.

ANSWER (i) A switch is the source of electric current in a circuit — this is the incorrect statement. A switch is not a source of electric current; it only completes or breaks the circuit. The source of electrical energy in such a circuit is the electric cell or battery. Statements (ii), (iii) and (iv) are all correct.

2. Observe Fig. 3.16. With which material connected between the ends A and B, the lamp will not glow?

ANSWER The lamp will not glow if an insulator is connected between A and B, because an insulator does not allow electric current to pass through it and so the circuit stays incomplete. Examples of such insulating materials are a plastic scale, a rubber eraser, a wooden stick, a glass bangle, a paper strip or a piece of wax (a candle). If, instead, a conductor such as a metal key, a coin, an iron nail or aluminium foil is connected, the lamp will glow.

3. In Fig. 3.17, if the filament of one of the lamps is broken, will the other glow? Justify your answer.

ANSWER In Fig. 3.17 the two lamps are joined one after another in the same single loop (a series arrangement), so they share one path for the current. No, the other lamp will not glow. If the filament of one lamp breaks, that lamp acts like a gap in the circuit. The circuit becomes open (incomplete), so no current can flow through any part of the loop, and the second lamp also goes off.

4. A student forgot to remove the insulator covering from the connecting wires while making a circuit. If the lamp and the cell are working properly, will the lamp glow?

ANSWER No, the lamp will not glow. Electric wires are covered with plastic or rubber, which are insulators. If the insulating cover is not removed from the ends, the bare metal of the wire never touches the terminals of the cell and the lamp. The current cannot flow through the insulating plastic, so the circuit stays incomplete and the lamp does not glow — even though the cell and lamp are themselves fine. The covering must be removed (about 1 cm) at each end to expose the metal.

5. Draw a circuit diagram for a simple torch using symbols for electric components.

ANSWERDraw a two-cell battery, a closed switch and an incandescent lamp connected by wires in one loop, as below. Each cell symbol has one long line (+) and one short line (−). The two cells face the same way in the battery symbol.Closing the switch completes the path through a working lamp. Opening the switch breaks the path and the lamp goes off. The long and short lines in the battery symbol are terminals; do not join them directly with a wire.

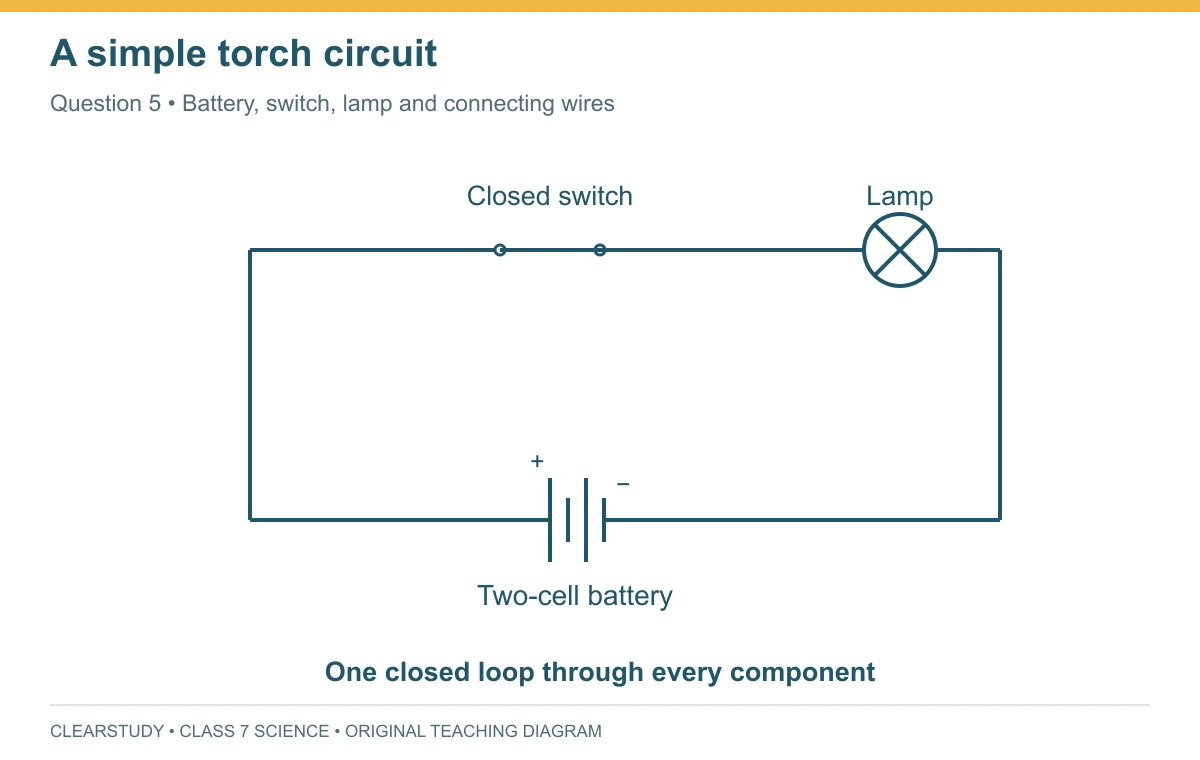

Closed torch circuit showing a two-cell battery, a switch and an incandescent lamp in one complete loop.
Question 5: a simple torch circuit drawn with standard component symbols. Tap to view at full size.

6. In Fig. 3.18: (i) If S2 is in ‘ON’ position, S1 is in ‘OFF’ position, which lamp(s) will glow? (ii) If S2 is in ‘OFF’ position, S1 is in ‘ON’ position, which lamp(s) will glow? (iii) If S1 and S2 both are in ‘ON’ position, which lamp(s) will glow? (iv) If both S1 and S2 are in ‘OFF’ position, which lamp(s) will glow?

ANSWERBoth lamps and both switches are in the same single loop. Neither switch controls a separate branch; opening either switch breaks the path through both lamps.(i) S₂ ON, S₁ OFF: neither lamp glows.(ii) S₂ OFF, S₁ ON: neither lamp glows.(iii) S₁ and S₂ ON: both L₁ and L₂ glow.(iv) S₁ and S₂ OFF: neither lamp glows.

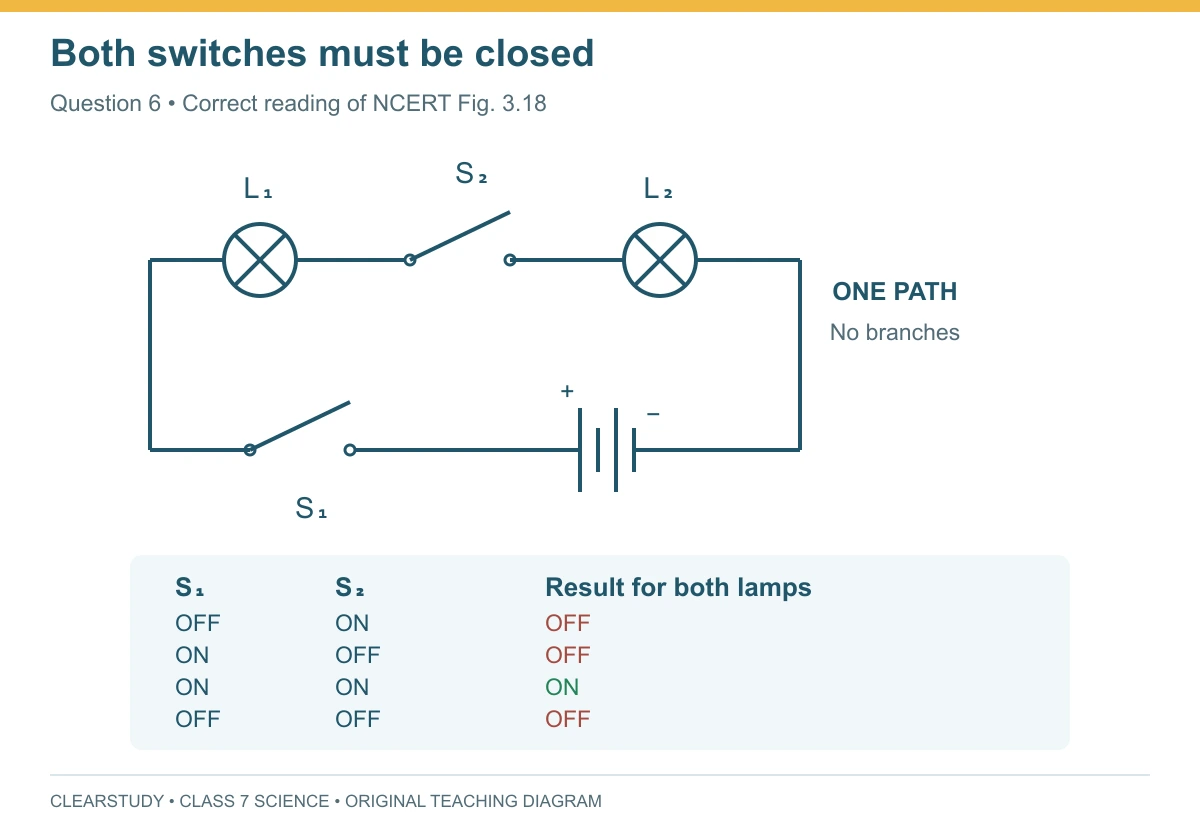

Two lamps L1 and L2, switches S1 and S2, and a battery connected in one series loop; a table shows both lamps glow only when both switches are on.
Question 6: the textbook’s single-loop arrangement, redrawn. Switches are shown open; the table covers all four cases. Tap to view at full size.

7. Vidyut has made the circuit as shown in Fig. 3.19. Even after closing the circuit, the lamp does not glow. What can be the possible reasons? List as many possible reasons as you can for this faulty operation. What will you do to find out why the lamp did not glow?

ANSWER Possible reasons the lamp does not glow: • The cell (or battery) is dead / discharged, or has been inserted with its terminals the wrong way for the holder. • The lamp is fused — its filament is broken, so no current can pass. • The insulating plastic cover was not removed from the ends of the connecting wires, so the metal does not make contact. • A loose connection — a wire is not tightly fixed at the cell holder, the lamp holder or the switch. • A wire is broken somewhere along its length. • The lamp is not properly screwed/fixed into its holder. • The switch terminals are not actually touching even though it looks closed (a faulty switch). How to find the fault: Check each component one by one. Replace the cell with a fresh one; test the lamp in a known working circuit; make sure 1 cm of insulation is stripped from every wire end; tighten every connection; and use a working tester (a cell and lamp with two free ends) to check that each wire and the switch actually conduct. Correct one fault at a time and retest; more than one fault may be present. Disconnect the cell before adjusting wires, and ask an adult to strip insulation.

8. In Fig. 3.20, in which case(s) the lamp/LED will not glow when the switch is closed?

ANSWEROnly case (c) does not glow when its switch is closed, assuming the components are working and appropriately rated.(a) and (b): the incandescent lamp glows with either cell polarity because its filament conducts in either direction.(c): the LED is reverse-connected. The battery’s positive terminal reaches the LED’s cathode (bar side), so it does not conduct normally.(d): the LED is forward-connected: the battery’s positive terminal reaches its anode, so it glows.

9. Suppose the ‘+’ and ‘−’ symbols cannot be read on a battery. Suggest a method to identify the two terminals of this battery.

ANSWERUse a known working LED test circuit suitable for the small classroom battery. For an ordinary untrimmed two-lead LED, the longer lead is the positive terminal (anode) and the shorter lead is the negative terminal (cathode).Ask the teacher to provide the appropriate current-limiting resistor or protected LED module. Connect the tester briefly in one direction. If it glows, the battery terminal connected towards the LED anode is positive. If necessary, reverse the tester connections.If it glows in neither direction, no conclusion about polarity follows: check battery voltage, connections and the tester. Do not use this method on mains electricity, vehicle batteries or unknown high-voltage sources.

10. You are given six cells marked A, B, C, D, E, and F. Some of these are working and some are not. Design an activity to identify which of them are working. (i) List the items that you require. (ii) Write the procedure that you will follow. (iii) With the items, carry out the activity to identify the cells that are working.

ANSWER (i) Items required: the six cells (A, B, C, D, E, F), one torch lamp (incandescent) with a lamp holder, a cell holder, connecting wires (insulation stripped about 1 cm at the ends), and a switch (optional). (ii) Procedure: Build a simple test circuit — a cell holder joined by wires to the lamp in a lamp holder, forming a closed loop (a “cell tester”). Place one cell at a time in the holder, taking care that the negative terminal is towards the spring side, close the circuit, and observe the lamp. (iii) Carry it out: Test the cells one by one. If the lamp glows, that cell is working; if the lamp does not glow (after checking the connections are correct), that cell cannot supply enough current to light this lamp in the tested setup; it may be weak or discharged. Repeat for all six cells and note the result for each (A–F). The cells that make the lamp glow are the working ones.

11. Using an LED that requires two cells in series to glow, Tanya made the circuit as shown in Fig. 3.21. Will the lamp glow? If not, draw the wires for correct connections.

ANSWERNo. In Fig. 3.21 the two negative cell terminals are connected together, while the two positive terminals lead to opposite LED terminals. For identical cells their effects oppose, rather than add; this is not the required series battery.Correct it by joining the positive terminal of cell 1 to the negative terminal of cell 2. Connect the remaining positive terminal (cell 2) towards the LED’s positive lead and the remaining negative terminal (cell 1) towards its negative lead, as in the diagram.The diagram shows the textbook polarity arrangement. For a practical LED circuit, the teacher should provide suitable current limiting and check the LED and cell ratings.

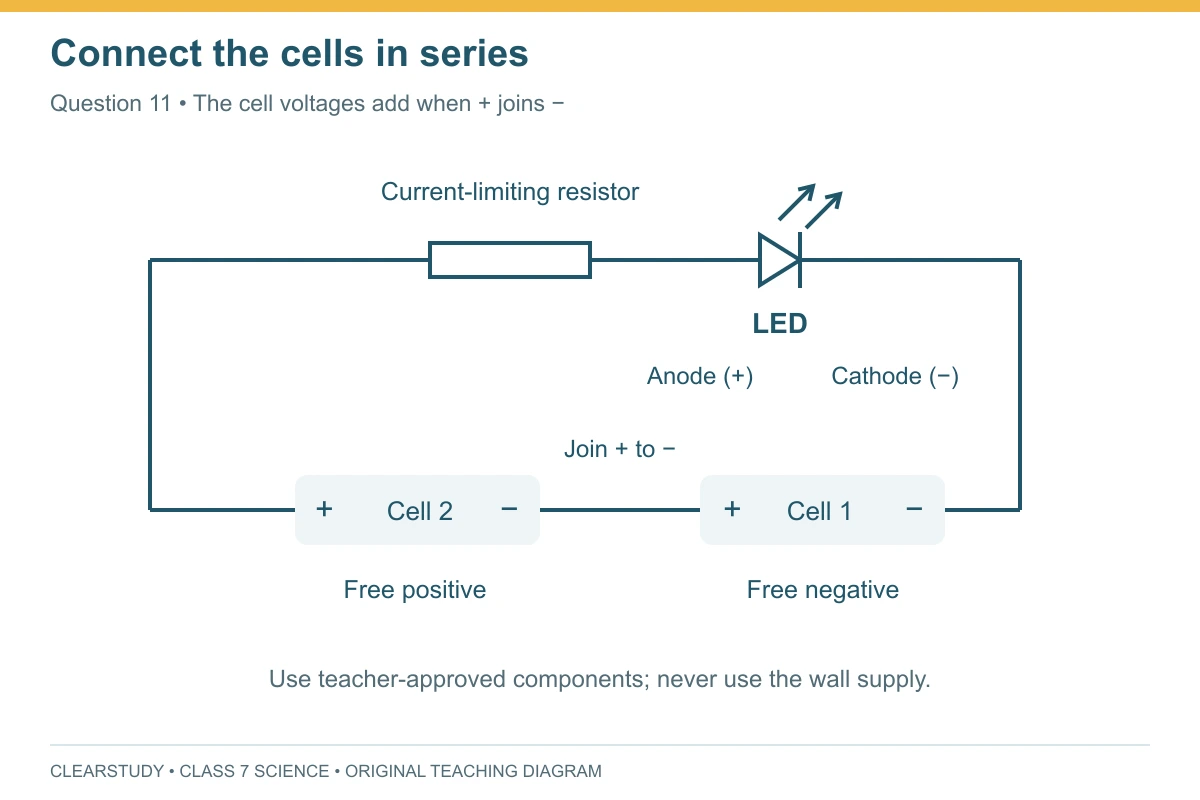

Correct two-cell series battery: cell 1 positive joins cell 2 negative; free positive supplies LED anode through current limiting; LED cathode returns to free negative.
Question 11: corrected polarity, with a current-limiting resistor added for a practical LED circuit. The resistor value must suit the LED and battery. Tap to view at full size.

Extra Practice Questions

These questions and MCQs are ClearStudy practice, separate from the NCERT exercise.

Short Answer Type Questions

Q1. What is an electric cell? Name its two terminals.

ANSWERAn electric cell is a portable source of electrical energy. It has two terminals — the metal cap is the positive (+ve) terminal and the flat metal disc is the negative (−ve) terminal.

Q2. How is a battery made from cells?

ANSWERA battery is a combination of two or more cells joined so that the positive terminal of one cell is connected to the negative terminal of the next cell. In this series arrangement, the cell voltages add. Operating time depends on the cells and the load; adding cells does not guarantee a longer running time.

Q3. What is the filament of an incandescent lamp and what does it do?

ANSWERThe filament is the thin wire fixed inside the glass bulb of the lamp. When electric current passes through it, the filament gets hot and glows to produce light.

Q4. Why must an LED be connected the right way in a circuit, unlike an incandescent lamp?

ANSWERCurrent passes through an LED in one direction only, so it glows only when its longer (positive) wire is joined to the positive terminal and its shorter (negative) wire to the negative terminal of the battery. An incandescent lamp glows either way because current can pass through its filament in both directions.

Q5. Why are electric wires covered with plastic or rubber?

ANSWERPlastic and rubber are insulators. The covering prevents the current from leaking out and protects people from electric shocks, since our body is itself a conductor of electricity.

Long Answer Type Questions

Q1. Explain how a switch turns a torchlight on and off. What happens to the circuit in each case?

ANSWERA switch is a simple device that either completes or breaks a circuit. In the ON position, the moving part (like the safety pin in the homemade switch) touches both terminals, closing the gap and completing the path. The circuit becomes closed, so current flows from the cell’s positive to its negative terminal and the lamp glows. In the OFF position, the moving part does not touch the second terminal, leaving an air gap. The circuit becomes open (incomplete), so no current can flow and the lamp does not glow. In this simple single-loop cell circuit, opening a switch anywhere breaks the loop. Household wiring has specific safety requirements and must not be altered as an experiment.

Q2. Distinguish between conductors and insulators with examples, and explain why both are important in electrical appliances.

ANSWERConductors are materials through which electric current flows easily — chiefly metals like copper, silver and gold; copper is mostly used for wires due to its lower cost and abundant supply. Insulators (poor conductors) are materials through which current does not pass easily under normal conditions — plastic, rubber, glass, dry wood and ceramics. Both are important: conductors are used for wires, switches, and the connectors of plugs and sockets so that current can flow where needed; insulators are used to cover wires, plug tops and switches so that current does not leak and people are protected from electric shocks. A safe appliance combines conducting parts to carry the current with insulating parts to keep it under control.

Q3. What is an electrical circuit? Explain the conditions under which a lamp glows, including the agreed direction of current.

ANSWERAn electrical circuit is a complete path that allows electric current to flow. A lamp glows only when one terminal of the lamp is connected to one terminal of the cell and the other terminal of the lamp to the other terminal of the cell, so that the path is complete (closed) and current passes through the filament. If the circuit is broken anywhere — by an open switch, a loose connection, a broken wire or a fused (broken) filament — no current flows and the lamp stays off. The direction of electric current in a circuit is taken to be from the positive to the negative terminal of the electric cell. For an incandescent lamp the connection can be either way round, but an LED glows only when connected in the correct direction.

Multiple Choice Questions (MCQs)

1. The metal cap of an electric cell is its:

(a) negative terminal    (b) positive terminal    (c) switch    (d) filament

2. A combination of two or more cells is called a:

(a) circuit    (b) switch    (c) battery    (d) conductor

3. In an incandescent lamp, light is produced by the glowing:

(a) glass bulb    (b) metal case    (c) filament    (d) holder

4. The longer wire of an LED is its:

(a) negative terminal    (b) positive terminal    (c) filament    (d) insulator

5. A device that completes or breaks a circuit is a:

(a) cell    (b) lamp    (c) switch    (d) battery

6. The direction of current in a circuit is taken from the:

(a) negative to positive terminal    (b) positive to negative terminal    (c) lamp to switch    (d) switch to wire

7. Which of the following is a good conductor of electricity?

(a) rubber    (b) plastic    (c) copper    (d) glass

8. Which material is an electrical insulator?

(a) iron    (b) aluminium    (c) silver    (d) plastic

9. When a switch is in the ‘OFF’ position, the circuit is said to be:

(a) closed    (b) open    (c) short    (d) complete

10. An incandescent lamp does not glow even when connected to a cell. One possible cause is:

(a) too bright    (b) fused (broken filament)    (c) an LED    (d) a conductor

Answer key: 1-(b), 2-(c), 3-(c), 4-(b), 5-(c), 6-(b), 7-(c), 8-(d), 9-(b), 10-(b).

Assertion–Reason Questions

For each Assertion–Reason question, choose: (A) Both true and the Reason correctly explains the Assertion; (B) Both true but the Reason is not the correct explanation; (C) Assertion true, Reason false; (D) Assertion false, Reason true.

A-R 1. Assertion: An LED glows only when it is connected the correct way round in a circuit.

Reason: Electric current can pass through an LED in one direction only.

A-R 2. Assertion: A switch is the source of electric current in a circuit.

Reason: A switch only completes or breaks the circuit; the source of energy is the cell or battery.

A-R 3. Assertion: Electric wires are covered with plastic or rubber.

Reason: Plastic and rubber are insulators and protect people from electric shocks.

A-R 4. Assertion: An incandescent lamp will glow whichever way its terminals are connected to a cell.

Reason: Current can pass through the filament of an incandescent lamp in both directions as long as the circuit is complete.

A-R 5. Assertion: A fused incandescent lamp does not glow even when connected to a good cell.

Reason: A broken filament stops the flow of current through the lamp.

Answer key: 1-(A), 2-(D), 3-(A), 4-(A), 5-(A).

How to write a clear answer

Remember the key rule for circuits: a lamp glows only when the circuit is complete (closed). For LED questions, always check the direction — longer wire (positive) to the positive terminal of the battery. When asked to find why a lamp does not glow, list several reasons (dead cell, fused lamp, insulation not removed, loose/broken connection, faulty switch) and explain how you would test them. Learn the standard symbols from Table 3.2 so you can quickly draw and read circuit diagrams. State that current flows from the positive to the negative terminal of the cell.

Common mistakes to avoid

  • Calling the switch a source of current — the cell/battery is the source; the switch only opens or closes the circuit.
  • Forgetting that an LED works in one direction only — reversing it keeps it off even with the switch closed.
  • Not removing the insulating cover from the ends of wires, so no contact is made.
  • Thinking a lamp can glow in an open (incomplete) circuit — it cannot.
  • Mixing up cell terminals: the metal cap = positive, the flat metal disc = negative.
  • Performing experiments with the mains/wall supply — never do this; use only cells or batteries.

Frequently Asked Questions

What is Class 7 Science Curiosity Chapter 3 about?

Chapter 3, Electricity: Circuits and Their Components, explains how electricity is used and how a torchlight works. It covers the electric cell, battery, incandescent lamp and LED, the electrical circuit, the switch, circuit diagrams drawn with standard symbols, and conductors versus insulators, along with important electrical safety.

What is the difference between a conductor and an insulator?

Conductors, such as copper, silver and gold (mainly copper for wires), allow electric current to flow easily. Insulators, such as plastic, rubber, glass and wood, do not allow current to pass and are used to cover wires, plugs and switches to protect us from electric shocks.

Why does an LED glow only one way but a bulb glows either way?

An LED allows current to pass in one direction only, so it glows only when its longer (positive) wire is joined to the positive terminal of the battery. An incandescent lamp has a filament that current can pass through in both directions, so it glows whichever way it is connected, as long as the circuit is complete.

Are these Class 7 Science Curiosity Chapter 3 solutions free?

Yes. All solutions are free and follow the official NCERT Curiosity textbook for 2026–27.
